The USB200PRO Technical Datasheet provides detailed engineering specifications, system behavior, and operational characteristics for the Nexcopy USB200PRO PC-based USB duplicator. This page is intended for technical evaluators, IT professionals, and organizations that require deeper visibility into how the system functions beyond what is covered on the product overview page.
This page documents engineering-level characteristics. For pricing, availability, and overview details, see the USB200PRO product page.

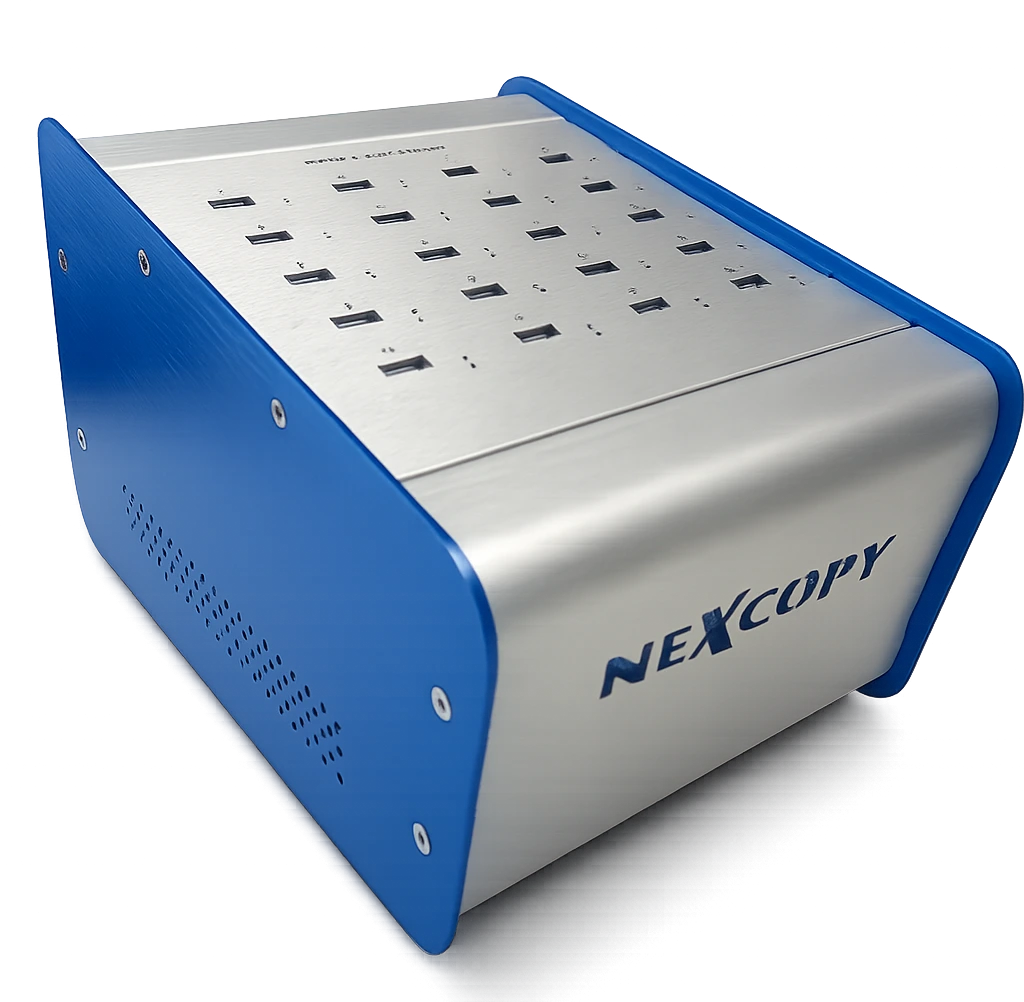

System Overview
The USB200PRO is a host-managed platform designed for controlled, repeatable production workflows performing advanced controller-level functions on supported USB flash drives. Capabilities include partition access control, write protection, CD-ROM emulation, and USB descriptor configuration. The system operates using a Windows-based application to manage connected devices and apply device-level behaviors supported by qualified media.
Technical Specifications
- Model
- USB200PRO
- Product class
- PC-based duplicator (PRO Series)
- Target capacity
- 20 USB devices per session
- Supported media
- USB 3.0 and USB 2.0 flash drives
- Connectivity
- USB 2.0
- Host USB ports required
- Two high-speed USB ports (USB 2.0 or USB 3.0)
- Supported operating systems
- Windows 11 and later (supported environment)
- System architecture
- 32-bit application architecture
- Legacy OS compatibility
- Software may run on older Windows versions; however, Nexcopy does not provide support for operating systems outside the supported environment.
- Minimum system requirements
- 1.8 GHz dual-core processor or better; 1 GB–2 GB RAM
- Dimensions
- 200 mm × 200 mm × 130 mm
- Weight
- 6.2 lb / 2.5 kg
- Software updates
- Lifetime updates included
Media & Controller Compatibility
The USB200PRO applies controller-level features that require validated USB flash controllers and qualified production media. Media qualification ensures predictable behavior, command reliability, and long-term platform stability.
- Controller restrictions
- None for standard duplication workflows
- Advanced functions require
- USB flash controllers from Alcor and SMI
- Reason for specific controllers
- Ensures controller compatibility, predictable behavior, validated command support, and long-term platform stability
- Future compatibility policy
- All new deployments require Nexcopy-qualified media
System Capabilities
- USB partitioning
- Create read-only USB partitions
- CD-ROM emulation
- Create USB CD-ROM emulation partitions
- Write protection control
- Write-protect first partition, second partition, or both
- Deletion control
- Prevent file deletion on supported USB media
- USB serial number management
- USB serial number control with optional alphanumeric prefix
- Sequential serial assignment
- Automatic sequential serial number generation
- Image file creation
- Create device image files including partitions and boot code
- Bootable media protection
- Write-protect bootable USB media
- Descriptor configuration
- Configure USB descriptor fields where supported
- Volume identification
- Assign custom volume labels
- Device reset behavior
- Reset supported USB devices to an unpartitioned state
Indicators & Controls
- System indicators
- LED indicators with real-time feedback via the Drive Manager GUI
- Physical controls
- Software-controlled operation; physical interaction limited to media insertion and removal
Power & Electrical
- UPS recommended
- Prevents job interruption during power loss
- Power quality
- Operate on stable AC power
- Power input
- 120V / 240V auto-detecting power supply
Environment
- Indoor use only
- Controlled environments required
- Operating altitude
- Up to 6,500 ft (2,000 m)
- Operating temperature
- 41°F–122°F (5°C–50°C)
- Operating humidity
- 15% to 85% (non-condensing)
- Storage temperature
- 14°F to 140°F (-10°C to 60°C)
- Storage humidity
- 10% to 90% (non-condensing)
- Ventilation required
- Do not obstruct airflow during operation
Cleanliness & Maintenance
- Dust-free environment recommended
- Improves socket longevity and reliability
- Socket maintenance
- Periodic inspection and cleaning using contact cleaner and compressed air
Packaging & Logistics
- Unit packaging dimensions
- 14 in × 11 in × 9 in (356 mm × 280 mm × 229 mm)
- Unit packaged weight
- 7.2 lb / 3.3 kg
- DIM weight
- 12 lb / 5.5 kg
- HS Code
- 8471.80
- Country of origin
- United States
- Incoterms
- Ex Works (Lake Forest, CA, USA)
- Package materials
- Corrugated cardboard carton with protective inserts
- Palletization
- Optional
Warranty & Support
- Warranty
- One-year warranty. Sockets are considered consumable after 30 days
- Software updates
- Lifetime updates included
- Technical support
- Lifetime technical support via email or phone. See the warranty page for details
Additional Information
This technical datasheet provides the standard technical specifications for the USB200PRO platform. If your application requires additional detail, environment-specific clarification, or advanced configuration guidance, Nexcopy technical support can provide further documentation upon request.
If you need purchasing details, pricing, or an overview of use cases, return to the USB200PRO product page.
