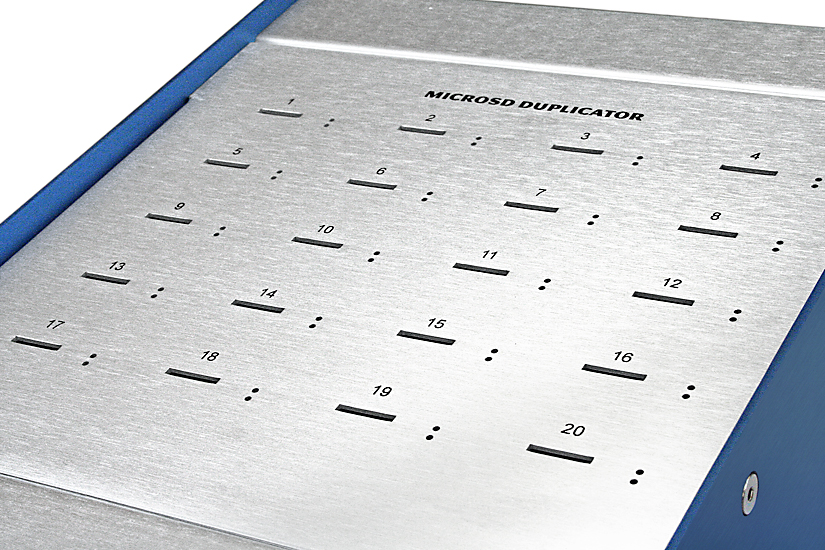

Silver microSD card duplicator with 20 numbered microSD slots arranged in four rows. Black text above reads MICROSD DUPLICATOR. Its perfect for those familiar with USB drive duplicators, ensuring fast, efficient data replication.
A blue and silver device labeled Nexcopy, this USB duplicator is crafted for duplicating USB drives. Featuring multiple slots for USB connections, an LCD screen, and control buttons, it offers comprehensive functionality. The device is angled slightly to the left, showcasing its side and front panels.
A blue circuit board with multiple microchips, capacitors, and five SD card slots evenly spaced along the top. The board features small electronic components and connectors, arranged symmetrically, similar to those used in USB drive duplicators for efficient data handling.
A row of three silver and blue electronic devices with multiple slots and buttons on top, labeled Nexcopy, showcases USB drive duplicators. Each device has labels indicating different functionalities like USB write protection, all positioned in a sleek, uniform design.
A sleek silver and blue electronic device, likely a USB duplicator, features labeled ports for data duplication. The label Nexcopy MICROSD DUPLICATOR 3.0 adorns its top surface, suggesting advanced capabilities like USB copy protection in its modern design.
A sleek flash drive duplicator with a blue frame and silver surface, featuring multiple USB ports and labeled Nexcopy. This USB copier includes buttons and LED indicators on the front panel for efficient operation.
Silver microSD card duplicator with 20 numbered microSD slots arranged in four rows. Black text above reads MICROSD DUPLICATOR. Its perfect for those familiar with USB drive duplicators, ensuring fast, efficient data replication.
A blue and silver device labeled Nexcopy, this USB duplicator is crafted for duplicating USB drives. Featuring multiple slots for USB connections, an LCD screen, and control buttons, it offers comprehensive functionality. The device is angled slightly to the left, showcasing its side and front panels.
A blue circuit board with multiple microchips, capacitors, and five SD card slots evenly spaced along the top. The board features small electronic components and connectors, arranged symmetrically, similar to those used in USB drive duplicators for efficient data handling.
A row of three silver and blue electronic devices with multiple slots and buttons on top, labeled Nexcopy, showcases USB drive duplicators. Each device has labels indicating different functionalities like USB write protection, all positioned in a sleek, uniform design.

16-Target PC Connected System

$1,299

The Nexcopy PC-based microSD Card Duplicator is an economical solution for data loading and data distribution to microSD cards. This PC-connected system offers unique functions that standalone systems do not have. The microSD Card Duplicator is a sleekly designed product with outstanding performance, reliability and quality.

Request a Quote Download Data Sheet

mSD160PC

  • $1,299
  • Advanced Functions: Specific Media Required
  • Set Write Protection – Create read-only microSD cards
  • Write CID Values to microSD Cards
  • Standard Functions: Use with any media
  • Read CID numbers from card, export to .csv file
  • Five Copy Methods: File Copy, Copy Add, Device Copy, IMG Copy and Unique Data Streaming
  • Supports bootable functions for any device
  • Supports all formats: FAT, FAT32, exFAT, NTFS, Ext2-3-4, HFS, Proprietary, etc.
  • Short or full device copy for optimal speed performance
  • Does not require drive letters from host PC
  • Selectable bit by bit verification function
  • Embedded check-sum verification with all jobs
  • User-friendly software interface
  • Password protected Job Setup area, ideal for IT Managers
  • Create .img archive files of a master microSD card
  • Unique data streaming to each microSD socket
  • Data collection feature for extracting content off memory card
  • Quick task bar for quick functions: Format, Delete, Naming, etc.
  • Clearly marked sockets on bezel to ID specific devices
  • USB 3.0 connection to host, 16 target, 110|220 auto-detecting

Specifications

  • Connectivity: USB 3.0
  • Number of targets: 16
  • USB ports required: 2
  • Compatibility: USB 3.0 and backward compatible
  • Dimensions: 200mm x 200mm x 130mm
  • Weight: 6.8lbs / 3.08kg
  • Power: 110 / 230 (auto detect)
  • PC connected
  • Software: Nexcopy Drive Manager Software, written in U.S.A.
  • Operating System: Windows 10+
  • Min PC requirements: 2GB RAM, 1.5Ghz processor or better
  • Windows 32/64 bit
  • Operating temperature: 40F – 165F
  • Operating humidity: 20% – 85%
  • Warranty: 1 year
  • Software support: Unlimited with free updates
  • Certified: CE, FCC, RoHS
  • Technical support: From U.S.A. Pacific Time zone
  • Call +1 949 481 6478

Video: Speed Test Example

This video shows the speed for data loading a 1.99GB image file to 16 microSD cards. The image file is 1.99GBs large and total amount of data to be copied, with a resulting partition of 2GBs holding 125MBs of usable files.

Play icon

Details About Transfer Speed

USB 3.0 specification provides for 500MB/second transfer speed. The video above displays a near maximum transfer speed of this specification. The key word in Universal Serial Bus is “serial;” this means 2GB data load from the video happens 16 times (once to each socket). The total data transferred in the video is 32GBs.

(500MB/16 devices = 31.25MB/second and Nexcopy is showing 1GB every 30 seconds). Transfer speed depends on host PC capabilities and write speed of flash memory; therefore, write times can vary from video presented.

PC-Based System

The microSD160PC card duplicator is Nexcopy’s flagship product for Secure Digital cards. This product is based on USB 3.0 technology and will write data to the card’s maximum write speed. There are six copy methods for the PC based units: File Copy, Copy Add, Device Copy – short, Device Copy – full, Image file Copy and Unique Data Streaming. In addition to these five copy functions, the PC based microSD Duplicators can read CID numbers of the microSD Cards.

Data Reading & Streaming

Nexcopy’s PC-based microSD duplicators will read CID numbers (Card ID numbers) from the microSD card and export them to a .csv file. From the .csv, a user may parse that information for application development, most notably to tie the CID number to an encrypted data set loaded back to the card.

The PC-based systems offer unique data streaming to each card socket. This feature, combined with the CID reading tool, is a powerful solution for using the unique CID numbers of Secure Digital.
