SD Card Duplicator – SD600PC

SD Card Duplicators

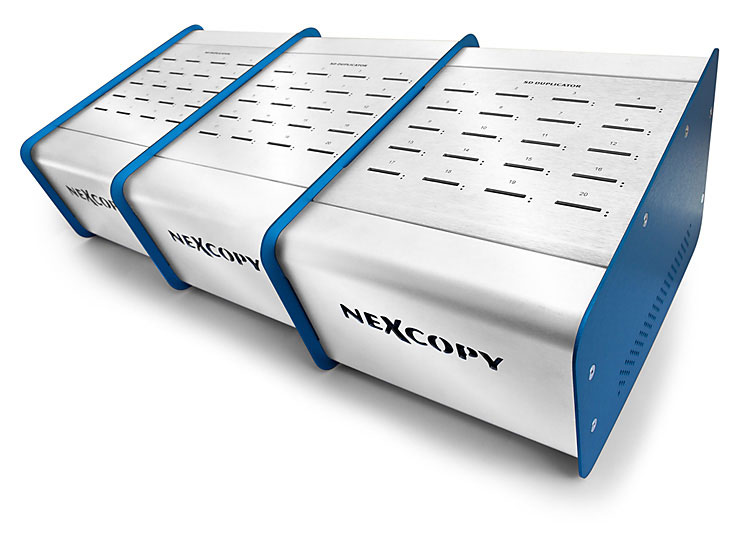

Three silver and blue Nexcopy machines with multiple USB slots, designed for seamless flash drive duplication, are arranged side by side, each proudly displaying the Nexcopy logo on the front panels.
Three silver and blue Nexcopy machines with multiple USB slots, designed for seamless flash drive duplication, are arranged side by side, each proudly displaying the Nexcopy logo on the front panels.

60 Target PC Connected System

The Nexcopy PC-based SD Duplicator is an economical solution for data loading and data distribution to SD flash memory. This PC-connected system offers unique functions that standalone systems do not have. The SD Card Duplicator is a sleekly designed product with outstanding performance, reliability and quality.

Request Quote Download Data Sheet

SD600PC Data Sheet

  • Five Copy Methods: File Copy, Copy Add, Device Copy, IMG Copy and Unique Data Streaming
  • Read CID numbers from card, export to .csv file
  • Write protect SD cards at the controller level
  • Supports bootable functions for any device
  • Supports all formats: FAT, FAT32, exFAT, NTFS, Ext2-3-4, HFS, Proprietary, etc.
  • Short or full device copy for optimal speed performance
  • Does not require drive letters from host PC
  • Selectable bit by bit verification function
  • Embedded check-sum verification with all jobs
  • User-friendly software interface
  • Password protected Job Setup area, ideal for IT Managers
  • Create .img archive files of a master SD card
  • Unique data streaming to each SD socket
  • Data collection feature for extracting content off memory card
  • Quick task bar for quick functions: Format, Delete, Naming, etc.
  • Clearly marked sockets on bezel to ID specific devices
  • USB 2.0 connection to host, 60 target (three aggregators), 110|220

Specifications

  • Connectivity: USB 2.0
  • Number of targets: 60
  • USB ports required: 4
  • Compatibility: USB 3.0 and backward compatible
  • Dimensions: 600mm x 200mm x 130mm
  • Weight: 20.4lbs / 9.02kg
  • Power: 110 / 230 (selectable)
  • PC connected
  • Software: Nexcopy Drive Manager Software, written in U.S.A.
  • Operating System: Windows 10+
  • Min PC requirements: 2GB RAM, 2.5Ghz processor or better
  • Windows 32/64 bit
  • Operating temperature: 40F – 165F
  • Operating humidity: 20% – 85%
  • Warranty: 1 year
  • Software support: Unlimited with free updates
  • Certified: CE, FCC, RoHS
  • Technical support: From U.S.A. Pacific Time zone
  • Call +1 949 481 6478

PC Based SD Duplicator

The SD600PC duplicator is Nexcopy’s flagship 60-target product for Secure Digital cards. There are five copy methods for the PC based units: File Copy, Copy Add, Device Copy, Image file Copy and Unique Data Streaming. In addition to these five copy functions, the PC-based SD Duplicators can read CID numbers of the SD cards.

How it Works

Nexcopy’s PC-based SD duplicators will read CID numbers (Card ID numbers) from the SD card and export them to a .csv file. From the .csv, a user may parse that information for application development, most notably to tie the CID number to an encrypted data set loaded back to the card.

The PC-based systems offer unique data streaming to each card socket. This feature, combined with the CID reading tool, is a powerful solution for using the unique CID numbers of Secure Digital.

Nexcopy offers the PC-based systems in 20-target, 40-target and 60-target configurations.
