USB Duplicators by Nexcopy

Nexcopy manufactures a variety of USB Duplicator systems. PC based systems use our exclusive, feature rich, Drive Manager software with advanced functions. Standalone systems are ultra-fast, high speed duplicators which copy gigabytes of data quickly and accurately.

USB - PC Based Systems

PC Based Systems

USB - Standalone Systems

Standalone Systems

USB Duplicator Key Features and Functions

Write Protect USB Drives

Write Protect USB Drives

Nexcopy’s PRO series duplicators will write protect USB media at the controller level. This is the highest level of security one can have. Write protection is also knows as Read Only and Data Locking.


Binary Copies

Binary Copies

All Nexcopy USB Duplicators can make binary copies. Our technology will copy boot strap code, partition table size, file allocation tables, system files and data.


Make Bootable Devices

Make Bootable Devices

Make Bootable devices for any operating system, standard or proprietary. You can make them from either a physical master or an .img file.


Data Erase Feature

Data Erase Feature

Full Erase is the only secure way to wipe a USB stick clean. With Nexcopy’s Erase function restore software cannot find or restore any data previously on the drive. One cycle or Three cycle Erase settings.


Copy from Image Files

Copy from Image Files

Using industry standard .img files, copy any file system. From a bootable Windows restore image to Linux distribution packages. Do it all with .img files!


Ultra-Fast Data Transfer

Ultra-Fast Data Transfer

Nexcopy standalone systems are ultra-fast USB copiers. These systems can reach speeds of nearly 1GB per minute to all targets.


... and Much More

... and Much More

There are more features than we can mention. From data extraction to unique data streaming. Contact Nexcopy to get help on selecting the right system.

Which USB Duplicator is Right for You?

USB Duplicator - Whitch One

Nexcopy USB Duplicators fall into two categories:
PC based and Standalone. Both have their advantages. Which model is right for you depends on the functions most important to your organization.

Both PC based systems and Standalone systems are binary copiers and excellent for copying boot code, partition tables and data.

A PC based system is ideal for network setups, Unique Data Streaming, Data Exraction and File Copy functions. You can also copy from master image (.img) files.

The stand-alone systems are binary copiers and specifically designed for speed. These systems copy from a USB physical master and do not connect to a PC.

PC Based USB Duplicators

  • USB200PRO

    USB200PRO

    USB200PRO Data Sheet
    Download for all product specifications and requirements.
    • Buy Now
    • The USB200PRO is our flagship product. This USB Duplicator can perform advanced functions at the USB controller level. Features include:
    • Create USB read only partitions
    • Create USB CD-ROM partitions
    • Write protect 1st partition, 2nd partition or both
    • USB write protection so data cannot be deleted
    • Control hard coded USB serial numbers
    • Sequential serial number control
    • Serial number control includes 10 character prefix option
    • Create USB specific .img files
    • Write protect bootable USB partitions
    • Set descriptor fields (VID, PID, SCSI)
    • 16 target USB 3.0 or 20 target USB 2.0 systems available
    • Reset USB media to remove partitions and write protection
    • Required product for Copy Secure production
    • Clearly marked sockets on bezel to ID specific devices

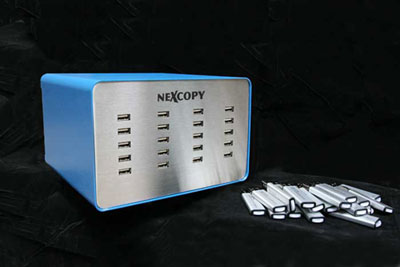

  • USB200PC

    USB200PC

    USB200PC Data Sheet
    Download for all product specifications and requirements.
    • Buy Now
    • Four Copy Methods: File Copy, Device Copy, IMG Copy and Copy Add
    • Supports bootable functions for any device
    • Supports all formats: FAT, FAT32, exFAT, NTFS, Ext2-3-4, HFS, Proprietary, Etc.
    • Short or Full device copy for optimal speed performance
    • Does not require drive letters from host PC
    • Selectable bit by bit verification function
    • Embedded checksum verification with all jobs
    • User friendly software interface
    • Password protect Job Setup area, ideal for IT Managers
    • Create .img archive files of a master USB drive
    • Unique data streaming to each USB port
    • Data collection feature for extracting content off flash drives
    • Quick task bar for quick functions: Format, Delete, Naming, Etc.
    • Clearly marked sockets on bezel to ID specific devices
    • USB 2.0 system, 20 target, 110|220
    • Upgrade to USB200PRO series also available
  • USB400PC

    USB400PC

    USB400PC Data Sheet
    Download for all product specifications and requirements.
    • Buy Now
    • Four Copy Methods: File Copy, Device Copy, IMG Copy and Copy Add
    • Supports bootable functions for any device
    • Supports all formats: FAT, FAT32, exFAT, NTFS, Ext2-3-4, HFS, Proprietary, Etc.
    • Short or Full device copy for optimal speed performance
    • Does not require drive letters from host PC
    • Selectable bit by bit verification function
    • Embedded checksum verification with all jobs
    • User friendly software interface
    • Password protect Job Setup area, ideal for IT Managers
    • Create .img archive files of a master USB drive
    • Unique data streaming to each USB port
    • Data collection feature for extracting content off flash drives
    • Quick task bar for quick functions: Format, Delete, Naming, Etc.
    • Clearly marked sockets on bezel to ID specific devices
    • USB 2.0 system, 40 target (two aggregators), 110|220
  • USB600PC

    USB600PC

    USB600PC Data Sheet
    Download for all product specifications and requirements.
    • Buy Now
    • Four Copy Methods: File Copy, Device Copy, IMG Copy and Copy Add
    • Supports bootable functions for any device
    • Supports all formats: FAT, FAT32, exFAT, NTFS, Ext2-3-4, HFS, Proprietary, Etc.
    • Short or Full device copy for optimal speed performance
    • Does not require drive letters from host PC
    • Selectable bit by bit verification function
    • Embedded checksum verification with all jobs
    • User friendly software interface
    • Password protect Job Setup area, ideal for IT Managers
    • Create .img archive files of a master USB drive
    • Unique data streaming to each USB port
    • Data collection feature for extracting content off flash drives
    • Quick task bar for quick functions: Format, Delete, Naming, Etc.
    • Clearly marked sockets on bezel to ID specific devices
    • USB 2.0 system, 60 target (three aggregators), 110|220
  • SSUSB160PC

    SSUSB160PC

    SSUSB160PC Data Sheet
    Download for all product specifications and requirements.
    • Buy Now
    • Four Copy Methods: File Copy, Device Copy, IMG Copy and Copy Add
    • Supports bootable functions for any device
    • Supports all formats: FAT, FAT32, exFAT, NTFS, Ext2-3-4, HFS, Proprietary, Etc.
    • Short or Full device copy for optimal speed performance
    • Does not require drive letters from host PC
    • Selectable bit by bit verification function
    • Embedded checksum verification with all jobs
    • User friendly software interface
    • Password protect Job Setup area, ideal for IT Managers
    • Create .img archive files of a master USB drive
    • Unique data streaming to each USB port
    • Data collection feature for extracting content off flash drives
    • Quick task bar for quick functions: Format, Delete, Naming, Etc.
    • Clearly marked sockets on bezel to ID specific devices
    • USB 3.0 system, 16 target, 110|220
    • Upgrade to USB200PRO series also available

Standalone USB Duplicators

  • USB115SA

    USB115SA

    USB115SA Data Sheet
    Download for all product specifications and requirements.
    • Buy Now
    • Standalone USB duplicator, no PC required
    • 16 socket systems
    • Standalone systems fully support both 2.0 and 3.0 media
    • Binary copier, supports bootable devices
    • Supports: FAT, FAT32, exFAT, NTFS, Ext2-3-4, HFX, Proprietary, Etc
    • Up to 1,800MB/s write speed to each socket
    • Asynchronous duplication for smaller jobs
    • Copy, Copy & Verify, Compare, Erase, QC testing and more
    • Powerful 32-bit CRC data error checking
    • D.o.D. (Dept of Defense) Erase function
    • USB benchmark speed testing feature
    • Memory H2 integrity testing feature
    • USB information and capacity check function
    • Real time performance feedback via LCD
    • Auto-start once system is fully populated
    • Contemporary and ergonomic design
    • Ideal design for road-show, live events
    • Heavy duty case for 24/7 operation
  • USB131SA

    USB131SA

    USB131SA Data Sheet
    Download for all product specifications and requirements.
    • Buy Now
    • Standalone USB duplicator, no PC required
    • 32 socket systems
    • Standalone systems fully support both 2.0 and 3.0 media
    • Binary copier, supports bootable devices
    • Supports: FAT, FAT32, exFAT, NTFS, Ext2-3-4, HFX, Proprietary, Etc
    • Up to 1,800MB/s write speed to each socket
    • Asynchronous duplication for smaller jobs
    • Copy, Copy & Verify, Compare, Erase, QC testing and more
    • Powerful 32-bit CRC data error checking
    • D.o.D. (Dept of Defense) Erase function
    • USB benchmark speed testing feature
    • Memory H2 integrity testing feature
    • USB information and capacity check function
    • Real time performance feedback via LCD
    • Auto-start once system is fully populated
    • Contemporary and ergonomic design
    • Ideal design for road-show, live events
    • Heavy duty case for 24/7 operation

USB Duplicators by Nexcopy

The Sales Pitch

Nexcopy’s line of USB Duplicators are manufactured to be feature rich and durable for industrial and heavy use applications. Our extensive line of USB duplicators include models for USB write protection, USB partition and USB serial number control. Nexcopy manufactures models ranging from 16 target to 60 target systems and support both USB 2.0 and USB 3.0 technology. Our equipment offering includes both PC based systems and standalone systems where no PC is required.

USB flash drives are becoming a main stream medium for interchange, storage and data distribution. With the trend of optical drives going away from laptops and desktop computers the USB flash drive has become the #1 method for data exchange. With the universal acceptance of USB technology and the continued price drops in flash memory, the USB stick is a real, viable option for getting content to your employees and customers. Our duplication equipment simplifies USB data loading to be quick and simple.

Our #1 goal is getting you the right equipment for the job.

Review the different models of USB Duplicators on this page. Better yet, contact us with questions.
